Vehicle Specifications

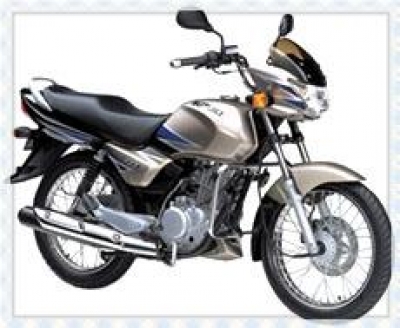

SUZUKI ZEUS Specfications And Features
The Suzuki Zeus was the half faired version of Suzuki "Heat". The Zeus was powered by 124cc 4-stroke air cooled engine. The bike was also available with optional front disc brakes and electric self start.

Engine

SpecificationValue
Engine Displacement124 CC
Engine TypeAir cooled, 4 stroke
Number Of Cylinders1
Valves Per Cylinder2
Max Power8.6 PS @7500 rpm
Max Torque10.0 Nm @3500 rpm
Bore x Stroke53.5 x 55.2 mm
Fuel TypePetrol
StarterElectric-Kick

Transmission

SpecificationValue
Transmission TypeManual
Number Of Speed Gears5
Final Drive (Rear Wheel)Chain

WHEELS & TYRES

SpecificationValue
Front Tyre 2.75 -18 42P
Rear Tyre 3.00 -18 52P

BRAKES

SpecificationValue
Front Brake Type130 mm Drum
Rear Brake Type130 mm Drum

SUSPENSION

SpecificationValue
Suspension FrontTelescopic, Coil spring, Oil damped
Suspension RearSwing-arm type, Coil spring, Oil damped

DIMENSIONS

SpecificationValue
Overall Length2040 mm
Overall Width770 mm
Overall Height1125 mm
Wheelbase1240 mm
Ground Clearance155 mm
Kerb Weight124 kg
Fuel Capacity12.0 Litres
