Vehicle Specifications

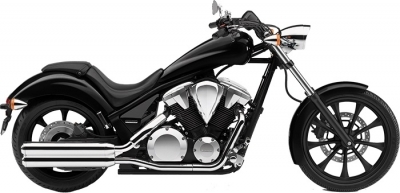

Honda VT 1300 CX Specfications And Features
The VT 1300CX is the only cruiser offering from Honda. The styling of VT 1300CX is of a true chopper with hard-tail retro look. The reliability of Honda comes complimentary with VT 1300CX.

Engine

SpecificationValue
Engine Displacement1312 CC
Engine typeLiquid cooled, 4 stroke
Number Of Cylinders2
Valves Per Cylinder4
Max Power57.8 PS @4250 rpm
Max Torque107.0 Nm @2250 rpm
Bore x Stroke89.5 x 104.3 mm
Fuel TypePetrol
StarterElectric

Transmission

SpecificationValue
Transmission TypeManual
Number Of Speed Gears4
Final Drive(Rear Tyre)Shaft

Wheels & Tyres

SpecificationValue
Front Tyre90 / 90 x R 21 M/C
Rear Tyre200 / 50 x R 18 M/C

Brakes

SpecificationValue
Front Brake336 mm Disc
Rear Brake296 mm Disc

Suspension

SpecificationValue
Suspension Front45 mm Telescopic Fork with 130 mm Stroke and 102.4 mm Axle Travel
Suspension RearMonoshock with Adjustable Rebound Damping and 35-Position Spring Preload Adjustability, 95 mm Axle Travel

Dimensions

SpecificationValue
Length (Overall)2575 mm
Width (Overall)900 mm
Height (Overall)1150 mm
Wheelbase1805 mm
Ground Clearance126 mm
Kerb Weight303 kg
Fuel Tank Capacity12.8 Litres
