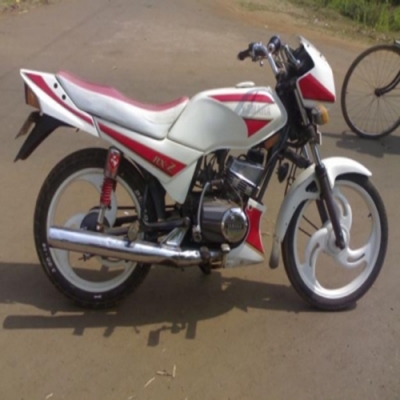

The Yamaha RXZ was a bike with different styling, the bike comprises of futuristic design for that time. The RXZ was equipped with the 132cc air cooled 2-stroke engine same as RX 135/RXG but tweaked to produce 14 Bhp of power. The bike was mated with 5-speed transmission and low resonating exhaust muffler with optional front disc brakes.
Engine
| Specification | Value |
| Engine Displacement | 132 CC |
| Engine type | Air cooled, 4 stroke |
| Number Of Cylinders | 1 |
| Valves Per Cylinder | - |
| Max Power | 14.2 PS @7500 rpm |
| Max Torque | 12.0 Nm @6500 rpm |
| Bore x Stroke | N/A |
| Fuel Type | Petrol |
| Starter | Kick |
Wheels & Tyres
| Specification | Value |
| Number Of Cylinders | 1 |
| Front Tyre | 2.75 x 18 |
| Rear Tyre | 3.00 x 18 |
Transmission
| Specification | Value |
| Transmission Type | 5 |
| Transmission Type | Manual |
| Final Drive(Rear Tyre) | Chain |
Brakes
| Specification | Value |
| Front Brake | 240 mm Disc |
| Rear Brake | 130 mm Drum |
Suspension
| Specification | Value |
| Suspension Front | Telescopic hydraulic shock absorbers |
| Suspension Rear | 5 step adjustable hydraulic shock absorber |
Dimensions
| Specification | Value |
| Length (Overall) | 1997 mm |
| Width (Overall) | 740 mm |
| Height (Overall) | 1070 mm |
| Wheelbase | 1245 mm |
| Ground Clearance | 145 mm |
| Kerb Weight | 115 kg |
| Fuel Tank Capacity | 10.5 Litres |
