Vehicle Specifications

Yamaha FASCINO Specfications And Features

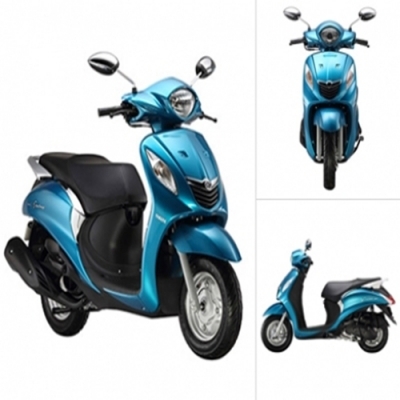

Yamaha Fascino is a beautiful looking unisex scooter, it is featured with 113cc air cooled engine which is equipped with Yamaha Blue Core technology. Yamaha claims mileage of 66Kmpl with the help of Blue Core tech. The scooter has retro styling with quality built-up but badly misses tubeless tyres and optional disc brake

Engine

SpecificationValue
Engine Displacement113 CC
Engine TypeAir cooled, 4 stroke
Number Of Cylinders1
Valves Per Cylinder2
Max Power7.1 PS @7500 rpm
Max Torque8.1 Nm @5000 rpm
Bore x Stroke50.0 x 57.8 mm
Fuel TypePetrol
StarterElectric-Kick

Transmission

SpecificationValue
Transmission Typeauto
Number Of Speed Gears-
Final Drive (Rear Wheel)Direct

WHEELS & TYRES

SpecificationValue
Front Tyre 90/100-10 53J (Tube type
Rear Tyre 90/100-10 53J (Tube type)

BRAKES

SpecificationValue
Front Brake Type130 mm Drum
Rear Brake Type130 mm Drum

SUSPENSION

SpecificationValue
Suspension FrontTelescopic with coil spring oil damper
Suspension RearUnit Swing with coil spring oil damper

DIMENSIONS

SpecificationValue
Overall Length1815 mm
Overall Width675 mm
Overall Height1120 mm
Wheelbase1270 mm
Ground Clearance128 mm
Kerb Weight103 kg
Fuel Capacity5.2 Litres
