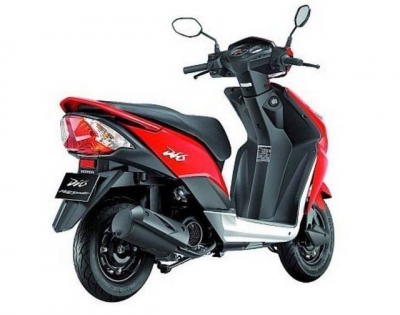

Honda introduced refreshed 2015 Dio in dual tone colors, the moto scooter now has distinct dual tone colors with new graphics. The Honda Eco Technology (HET) is also embedded in the engine for better fuel economy.
Engine
| Specification | Value |
| Engine Displacement | 109.2 CC |
| Engine type | Air cooled, 4 stroke |
| Number Of Cylinders | 1 |
| Valves Per Cylinder | 2 |
| Max Power | 8.0 PS @7000 rpm |
| Max Torque | 8.8 Nm @5500 rpm |
| Bore x Stroke | 50.0 x 55.6 mm |
| Fuel Type | Petrol |
| Starter | Electric-Kick |
Transmission
| Specification | Value |
| Transmission Type | Manual |
| Number Of Speed Gears | - |
| Final Drive(Rear Tyre) | Chain |
Wheels & Tyres
| Specification | Value |
| Front Tyre | 90/100-10 |
| Rear Tyre | 90/100-10 |
Brakes
| Specification | Value |
| Front Brake | 130 mm Drum |
| Rear Brake | 130 mm Drum |
Suspension
| Specification | Value |
| Suspension Front | Spring loaded hydraulic type |
| Suspension Rear | Spring loaded hydraulic type |
Dimensions
| Specification | Value |
| Length (Overall) | 1781 mm |
| Width (Overall) | 710 mm |
| Height (Overall) | 1133 mm |
| Wheelbase | 1238 mm |
| Ground Clearance | 158 mm |
| Kerb Weight | 105 kg |
| Fuel Tank Capacity | 5.3 Litres |
