Vehicle Specifications

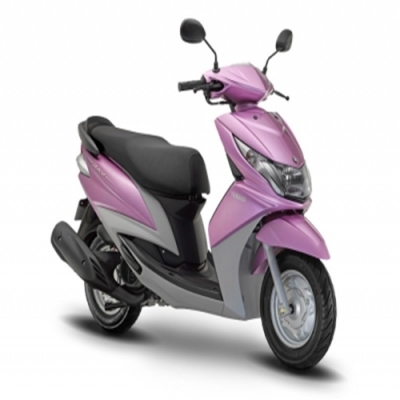

Yamaha CYGNUS RAY Specfications And Features
Yamaha RAY is a women oriented scooter by Yamaha, it has combination of great acceleration, comfort, ease and maneuverability. The design of the RAY is sophisticated and dynamic keeping its target "women crowd" in mind.

Engine

SpecificationValue
Engine Displacement113 CC
Engine TypeAir cooled, 4 stroke
Number Of Cylinders1
Valves Per Cylinder2
Max Power7.1 PS @7500 rpm
Max Torque8.1 Nm @5000 rpm
Bore x Stroke50.0 x 57.8 mm
Fuel TypePetrol
StarterElectric-Kick

Transmission

SpecificationValue
Transmission Typeauto
Number Of Speed Gears-
Final Drive (Rear Wheel)Belt

WHEELS & TYRES

SpecificationValue
Front Tyre 90/100-10 53J (Tube type)
Rear Tyre 90/100-10 53J (Tube type)

BRAKES

SpecificationValue
Front Brake Type130 mm Drum
Rear Brake Type130 mm Drum

SUSPENSION

SpecificationValue
Suspension FrontTelescopic forks Suspension
Suspension RearUnit swing with spring loaded hydraulic damper

Dimensions

SpecificationValue
Overall Length1835 mm
Overall Width675 mm
Overall Height1075 mm
Overall Length1835 mm
Wheelbase1270 mm
Ground Clearance128 mm
Kerb Weight104 kg
Fuel Capacity5.0 Litres
