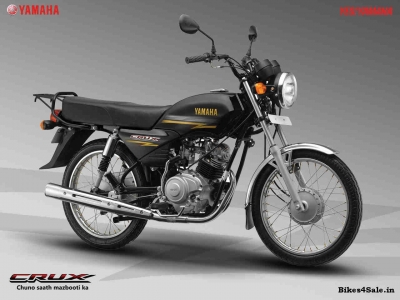

The Crux is a robust and reliable motorcycle from Yamaha. It is the entry level bike from Yamaha"s stable, it features 106cc 4-stroke engine and targeted towards the entry level and rural market of India.
Engine
| Specification | Value |
| Engine Type | Air-cooled, 4-stroke, SOHC, 2-Value |
| Cylinder Arrangment | Single Cylender |
| Displacement | 106 CC |
| Bore & Stroke | 49.0 X 56.0MM |
| Compression Ratio | 9.0:1 |
| Maximum Power | 7.6 PS / 7.500 RPM |
| maximum Torque | 7.5 N.M /7,500 RPM |
| Starting System | Kick Start |
| Lubrication | Wet Sump |
| Ignition System | C.D.I. |
| Primary / Secondary Reduction Ratio | 3.722 / 3.143 |
| Clutch Type | Wet Multiple Disc |
| Transmission Type | 4-Speed Constant Mesh |
| Gear Ratios | 1st=3.000, 2nd=1.688,3rd=1.200,4th=0.875 |
Chassis
| Specification | Value |
| Frame Type | Double Crddle |
| Tyre Size (Front / Rear) | 2.50 X 18" 4PR / 2.75 X 18" 6PR |
| Brake Type (Front / Rear) | Drum / Drum |
| Suspension Type (Front / Rear) | Telescopic / Swing Arm |
| Battery Capacity / Type | 12V, 35/35W X 1 |
Dimensions
| Specification | Value |
| Overall Length X Width X Height | 2,000MM x 735MM x 1.075MM |
| Seat Hight | 780MM |
| Wheel Base | 1.260 MM |
| Minimum Ground Clearance | 160 MM |
| Kerb Weight | 113 Kg |
| Fuel Tank Capacity | 11 Liters |
